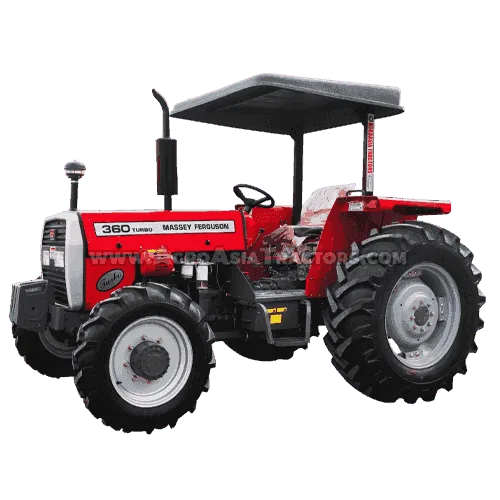

Massey Ferguson MF 360 (2wd 60hp)

Performance

Engine Power at 2,250 rpm>

60 (B.S) hp

Torque at 1,350 rpm

212 Nm

PTO Power at Rated

48 hp

Engine Speed

*Certified at BS AU 141a

Electrics

Voltage

12V, Negative Earth

Battery

118 Ah

Starter

2.2 kW

Alternator

32 Amp

Transmission

Type	Sliding Spur

Number of Gears

8 Forward, 2 Reverse

Road Speed at 2,250

Engine RPM with 14.9/13×28 rear tyres

Gear

Speed (km/hr)

Forward 1 (First Low)

2.6

Forward 2

3.8

Forward 3

5.2

Forward 4

7.0

Forward 5 (First High)

10.4

Forward 6

15.2

Forward 7

20.8

Forward 8

28.0

Reverse 1 (Low)

3.5

Reverse 2 (High)

14.1

Hydraulics

Functions

Draft Control, Position Control Response Control, Constant Pumping

Pump Type

Reciprocating, Ferguson Pump

Oil Flow

16.0 ltr/min

Pressure

21 Mpa at normal operating temperature

Lift Capacity with Lower

2,145 kg

Links Horizontal

Lower Links

With Cat. I & II Interchangeable Balls

Rear Axle & Brakes

Axle Type

Straddle with apicyclic redution unit

Brake Type

Oil immersed, Multi-disc

Brake Pedal

Pendant

Differential Lock

Mechanical

Brake Actuation

Mechanical

Parking Brake

Hand Lever Operated

Tyres

Front

7.50 – 16 (6PR)

Rear	14.9 / 13 – 28 (6PR)

Clutch

Type

Dual

Diameter

305 x 254 mm

Front Axle

Type	Box Section, Adjustable

Steering

Type	Hydrostatic

Track Adjustment

Front Axle

1,275 -1, 884 mm

Rear Axle

1,438 -2, 124 mm

Engine

Make / Type

Diesel /T 3.1524

No. of Cylinders

Injection

Direct

Bore

91.4mm

Stroke

127.0mm

Capacity (litres)

2.5L

Compression Ratio

16.5:1

Starting Aid

Thermostart

Throttle Control

Hand and Feet

Cooling

Water

Air Cleaner Type

Oil Bath

Air Pre-Cleaner

Over Bonnet, Air Swirl

Fuel Filter

Dual, High Capacity

Exhaust

Vertical Muffler under bonnet

Oil Cooler

Water Cooled

Power Take Off

Type

Live

Engine Speed at 540 pto rpm

1,789 rpm

Shaft Diameter

35mm

No. of Splines

Instrumentation

Guages

Technometer, Hourmeter, Fuel Level, Battery Condition & Water Temperature

Warning Lights

Direction Indicators, Battery Charge, Headlight Main Beam, Low Engine Oil Pressure, Brake Lights & Auxiliary Socket

Weight & Dimensions

Weight

Gross Weight

2,010 kg

Dimensions

Wheel Base

2,032 mm

Overall Length

3,353 mm

Overall Width (Min)

1,890 mm

Height

Over Exhaust

2,236 mm

Over Steering Wheel

1,499 mm

Turning Circle

With Brakes

5,876 mm

Without Brakes

6,833 mm

Ground Clearance

Under Gear Box

400 mm

Capacities

Fuel Tank

47.5 L

Engine Pump

6.8 L

Cooling System

11.7L

Hydraulic System

36.0L

Steering Box

2.0L

Oil Bath Air-Cleaner

0.5 L

Standard Equipment

Weight frame without weights, standard tool box with set of tools, Top Link, Top Link End Cat-I, II balls, Check Chains, Spring Suspension Seat, Flat Top Fenders & Operator’s and service Manual.

Optional Equipment

Front end Weights, Swinging Draw Bar, Sun Canopy, Pintle Hook & 9 Hole drawbar.
