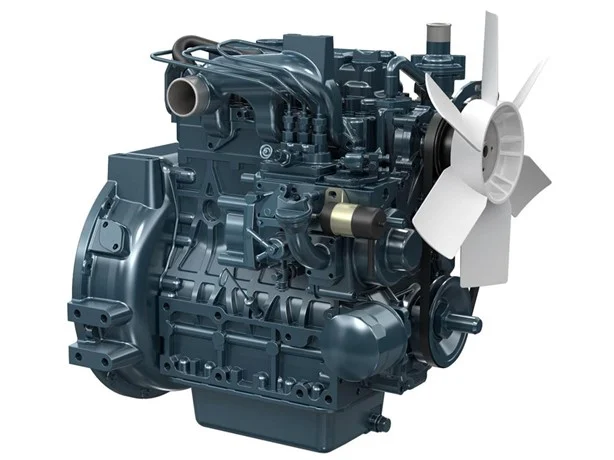

- Engine model D1703-M-E4-BG2
Emission regulation EU Stage V
Type Vertical, water cooled
4-cycle IDI diesel engine
Cylinders 3
Bore and Stroke mm (in) 87.0 × 92.4
(3.43 × 3.64)
Displacement L (cu.in) 1.647 (100.5)
Aspiration Naturally aspirated
Aftertreatment —
Net stand-by power *1 kW (HP) /
rpm 15.0 (20.1) / 1500
Net continuous power *1 kW (HP) /
rpm 12.8 (17.2) / 1500
Combustion system Indirect Injection
Fuel system In-line pump
Length x Width x Height *2
(without aftertreatment unit) mm (in) 574 × 486 × 643
(22.6 × 19.1 × 25.3)
Dry weight *2 kg (lb) 170 (375)
