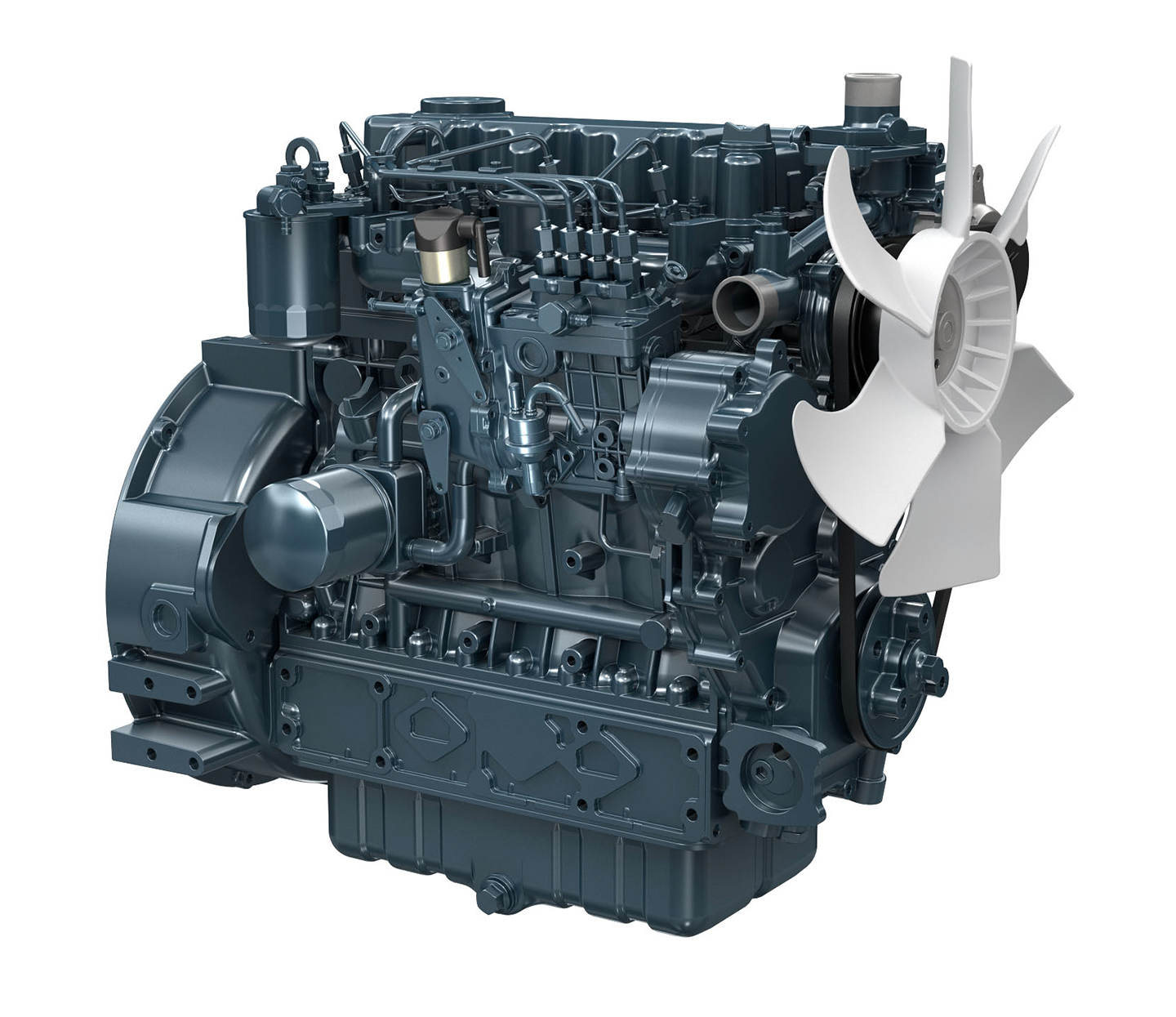

V3300 (28.9 kW)

Description

Engine model

V3300-E2B

Emission regulation

EPA/CARB Tier 2 level + EU Stage II level

Type

Vertical, water cooled 4-cycle diesel engine

Cylinders

4

Bore and stroke

mm (in)

98.0 x 110.0 (3.86 x 4.331)

Displacement

L (cu.in)

3.318 (202.5)

Aspiration

Naturally aspirated

Aftertreatment

–

Rated output / speed^*1

kW (HP) / rpm

53.9 (72.3) / 2600

Maximum torque / speed^*1

Nm (lb-ft) / rpm

234.4 (172.9) / 1400

Combustion system

Indirect injection

Fuel system

In-line pump

Length x Width x Height^*2
(without aftertreatment unit)

mm (in)

699 x 536 x 741 (27.5 x 21.1 x 29.2)

Length x Width x Height^*3
(with aftertreatment unit)

mm (in)

–

Dry weight

kg (lb)

241 (531)
