- Engine model

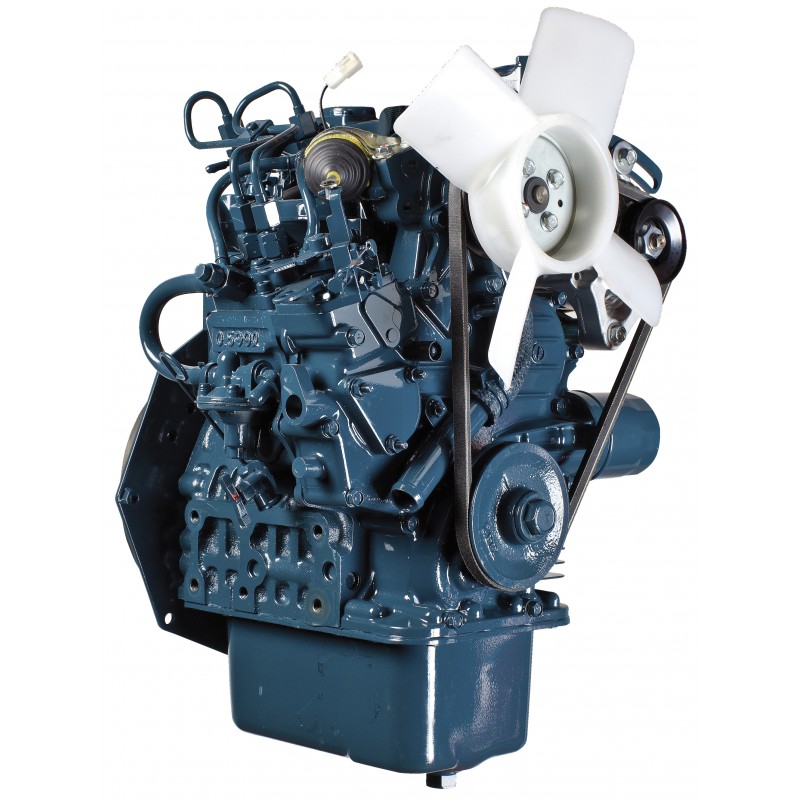

- Z482-E2B
- Emission regulation
- EPA/CARB Tier 2 level
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 2
- Bore and stroke
- mm (in)
- 67.0 x 68.0 (2.64 x 2.68)
- Displacement
- L (cu.in)
- 0.479 (29.23)
- Aspiration
- Naturally aspirated
- Aftertreatment
- –
- Rated output / speed*1
- kW (HP) / rpm
- 9.9 (13.3) / 3600
- Maximum torque / speed*1
- Nm (lb-ft) / rpm
- 29.7 (21.9) / 2600
- Combustion system
- Indirect injection
- Fuel system
- In-line pump
- Length x Width x Height*2
(without aftertreatment unit) - mm (in)
- 338 x 386 x 564 (13.3 x 15.2 x 22.2)
- Length x Width x Height*3
(with aftertreatment unit) - mm (in)
- –
- Dry weight
- kg (lb)
- 53 (117)
Description
